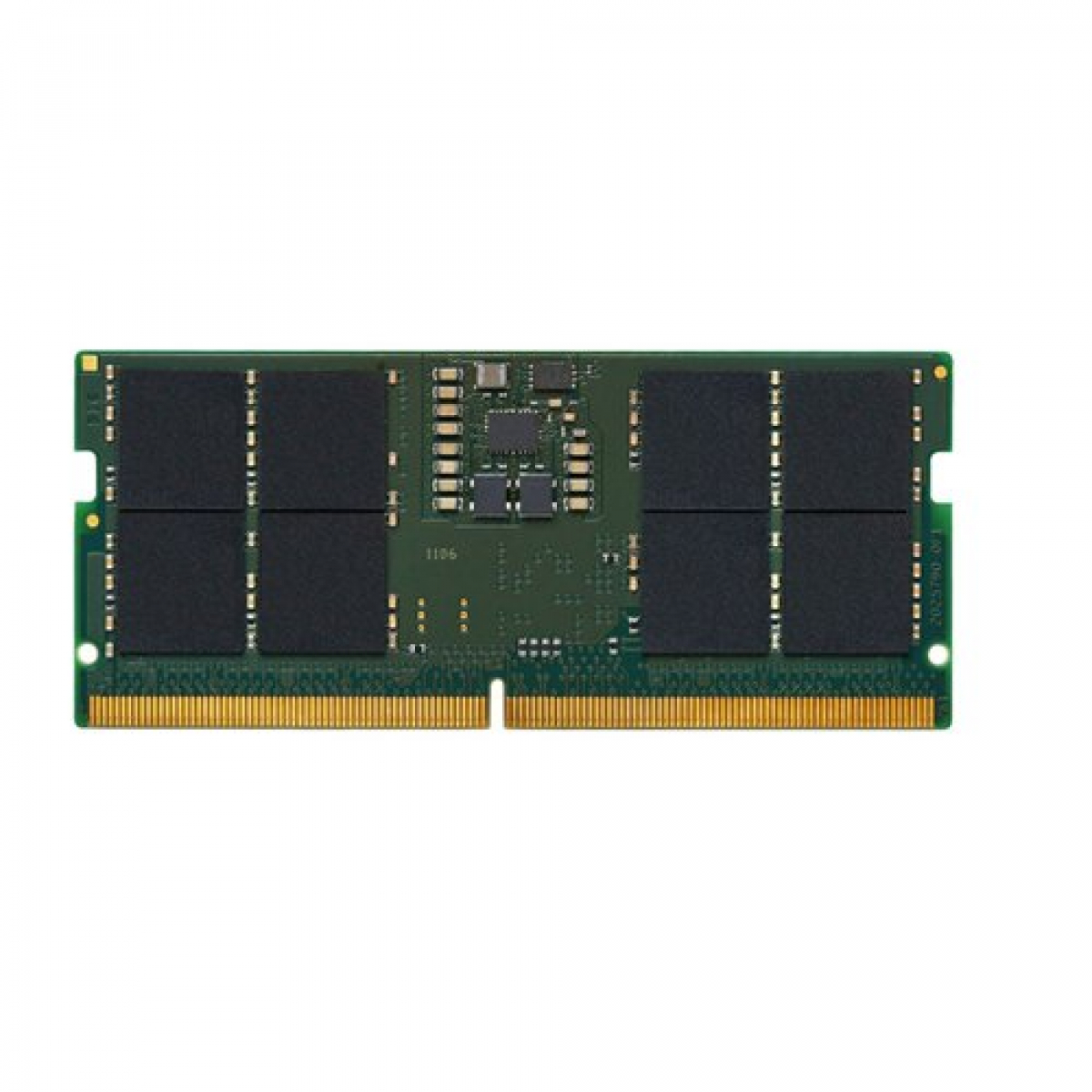

KINGSTON 16GB 5600MT/s DDR5 Non-ECC CL46 SODIMM

KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8,memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: SPECIFICATIONS CL(IDD) 46 cycles Row Cycle Time (tRCmin) 48ns(min.) Refresh to Active/Refresh 295ns(min.) Command Time (tRFCmin) Row Active Time (tRASmin) 32ns(min.) UL Rating 94 V - 0 Operating Temperature 0 o C to +85o C Storage Temperature -55 o C to +100 o C FEATURES Power Supply: VDD = 1.1V Typical VDDQ = 1.1V Typical VPP = 1.8V Typical VDDSPD = 1.8V to 2.0V On-Die ECC PCB: Height 1.18" (30.00mm) RoHS Compliant and Halogen-Free
