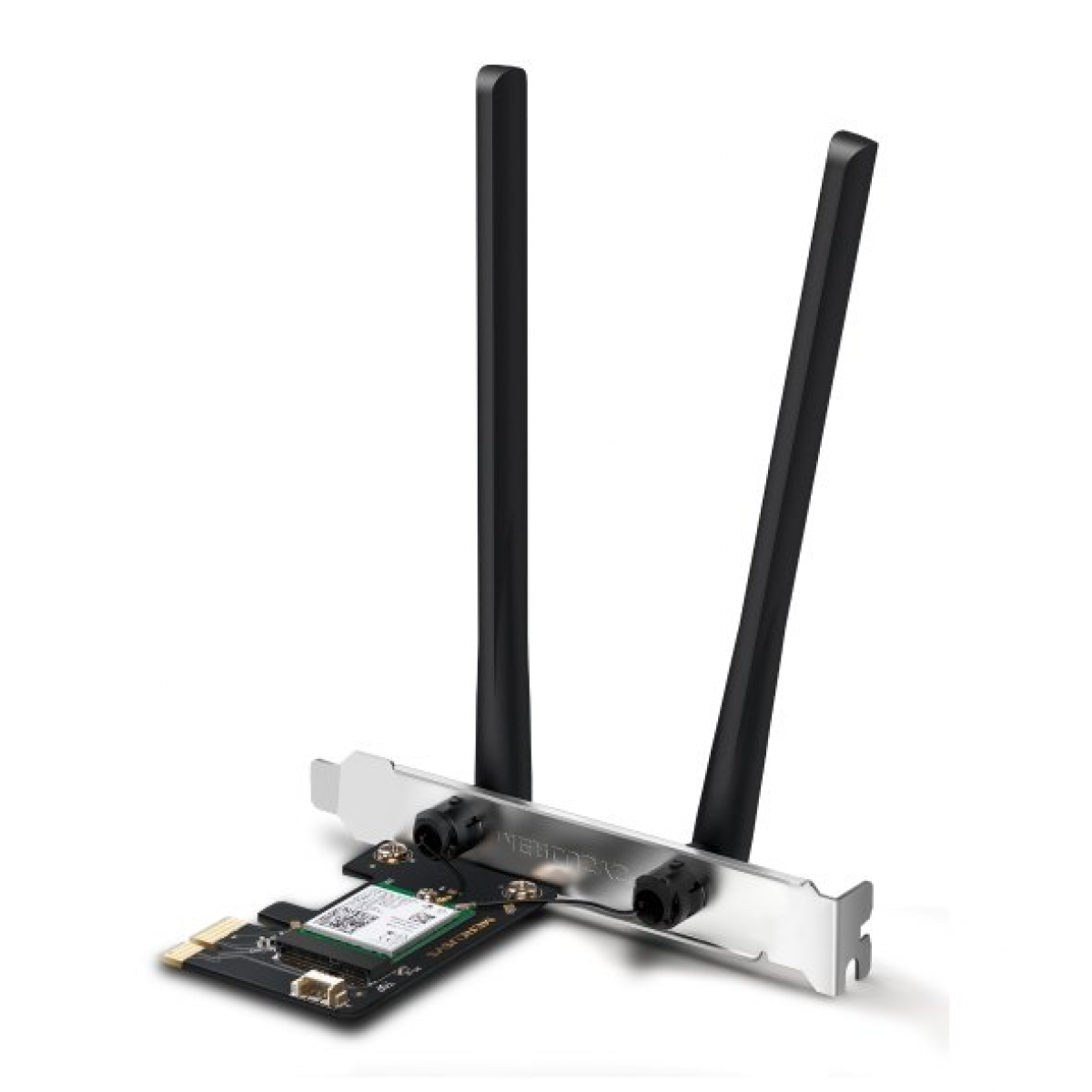

TP-LINK MA80XE PCIE ADAPTER AX3000 + BLUETOOTH
- Product Code: PNETTPLUUNV
- Availability: 2
-
$69.00
- Ex Tax: $60.00
Wireless
Wireless Standards
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz
Signal Rate
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions (W X D X H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8x 21.5 mm)
Antenna Type
2x Fixed High-Performance Omni-Directional Antennas
Others
Package Contents
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD
Environment
Operating Temperature: 0?C~40?C (32?F~104?F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
System Requirements
Supported operating systems include Windows 10, 11(64-bit)
